Simulation Vibration Test Device High Frequency Vibration Test Apparatus
Product Overview
This high frequency vibration test apparatus is designed for testing various packaging materials, PC boards, and electrical products. It complies with multiple industry standards:
1. IEC62133 2. UL1642 3. UN38.3 4. GB31241
Working Principle
The vibration tester operates similarly to a loudspeaker, where an electrical conductor moves through electromagnetic force in a magnetic field. By controlling the driving current, the vibration generator can be precisely managed.
Performance Characteristics
The maximum acceleration level is determined by current and loading. At low frequencies, displacement is restricted to prevent excessive acceleration. The moving element's resonance frequency is set above the operational range for optimal performance.
Air Cooling Vibration Testing Machine Specifications
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s²) |
Rated Speed (m/s) |
Rated displacement (p-p) mm |
Max. Loading (Kg) |
Moving coil (Kg) |
Dimension of Moving coil (mm) |
| ES-3 |
3000 |
3000 |
3-3500 |
1000 |
1.6 |
25 |
100 |
3.5 |
Φ150 |
| ES-3a |
3000 |
3000 |
3-3500 |
400 |
1.6 |
40 |
120 |
9 |
Φ230 |
| ES-6 |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
25 |
180 |
6.5 |
Φ230 |
| ES-6a |
6000 |
6000 |
3-3500 |
1000 |
1.6 |
51 |
250 |
12 |
Φ230 |
| ES-10 |
10000 |
10000 |
3-3000 |
1000 |
1.8 |
51 |
270 |
14 |
Φ240 |
| ES-20 |
20000 |
20000 |
3-3000 |
1000 |
1.8 |
51 |
300 |
30 |
Φ320 |
| ES-30 |
30000 |
30000 |
3-2800 |
1000 |
1.8 |
51 |
450 |
40 |
Φ450 |
| ES-40 |
40000 |
40000 |
3-2800 |
1000 |
1.8 |
51 |
500 |
50 |
Φ450 |
| ES-50 |
50000 |
50000 |
3-2700 |
1000 |
1.8 |
51 |
750 |
50 |
Φ450 |
Technical Parameters of Vertical Expander
Technical Parameters of Horizontal Expander
Key Features
- Well-designed dynamic circle skeleton with high stage axial resonance frequency
- Dual-magnetic circuit design with low flux leakage and compact structure
- Rocker rod roller bearings with import-oriented composite body stiffness orientation
- Trunnion isolation foundation for easy installation and mobility
- Advanced moving system ensuring high reliability
- Optimized duct design for enhanced cooling efficiency
- High static and dynamic stiffness for improved bearing capacity and low-frequency performance

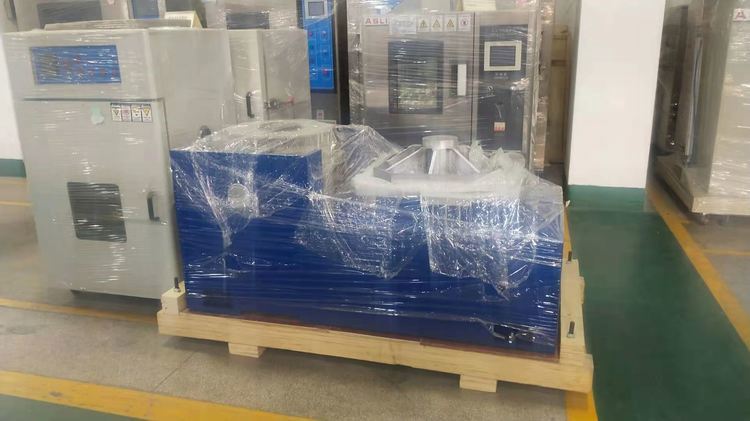

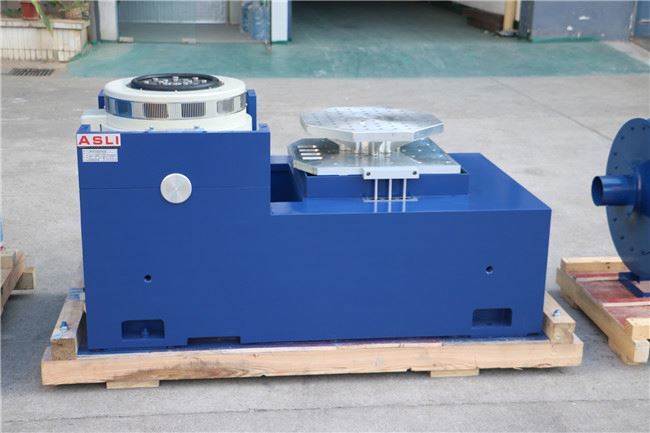

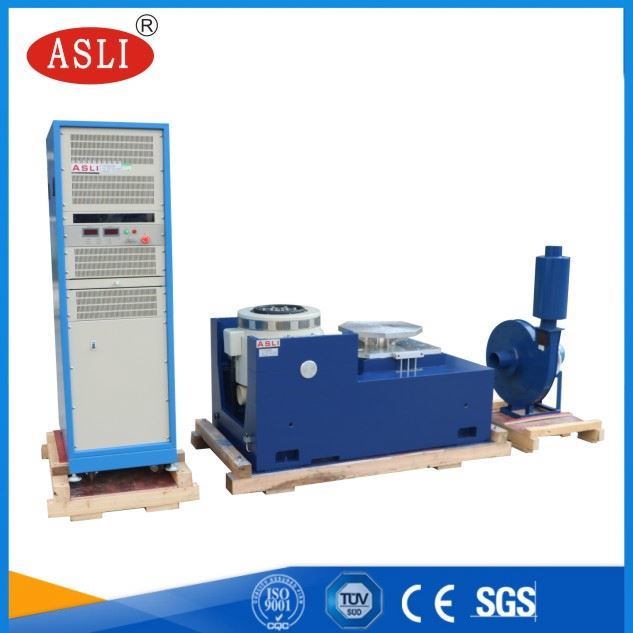

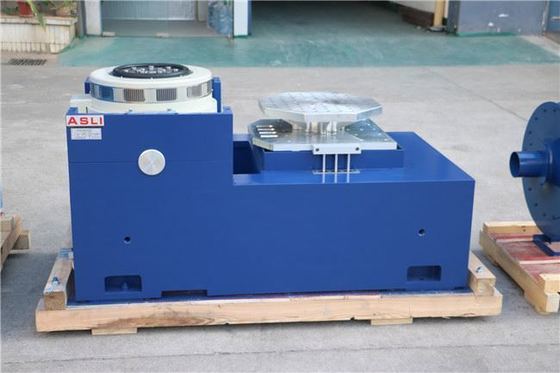

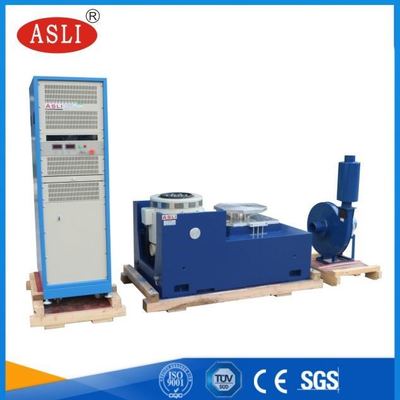

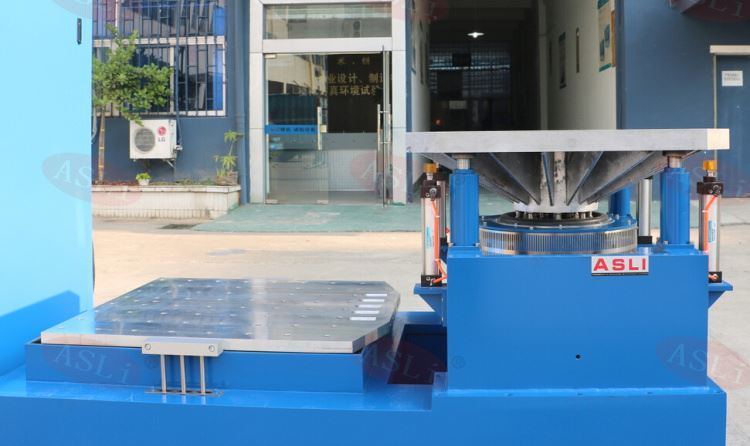

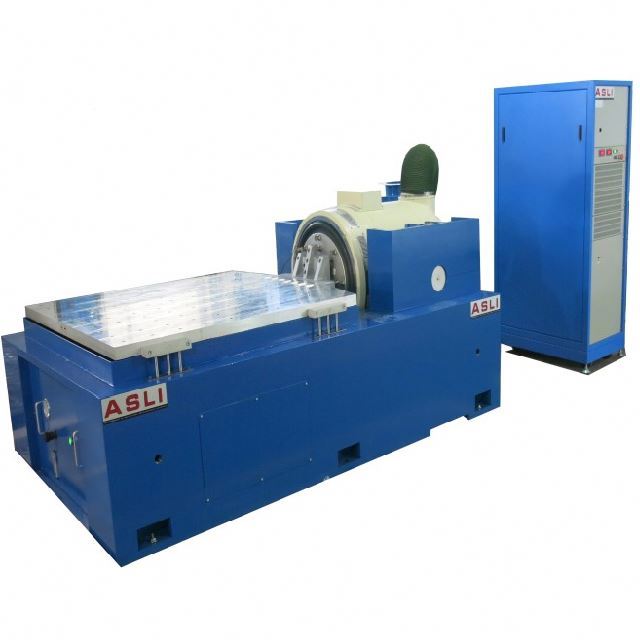

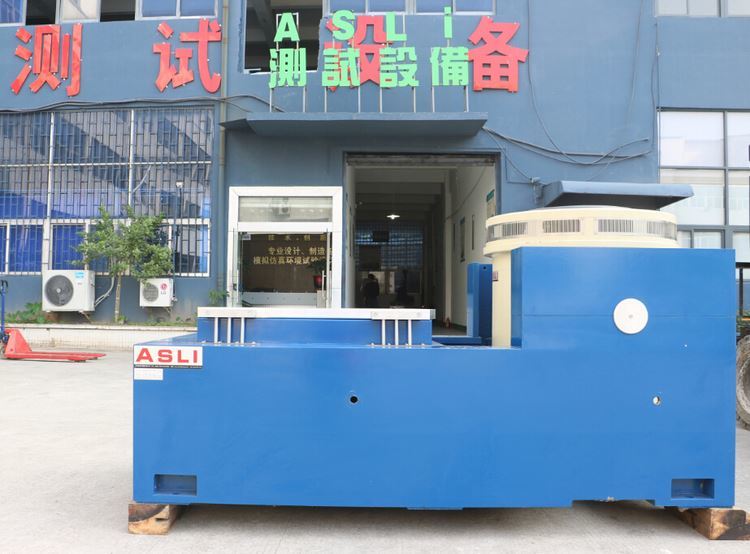

Product Images
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our Simulation Vibration Test Device High Frequency Vibration Test Apparatus, please don't hesitate to send your inquiry.
