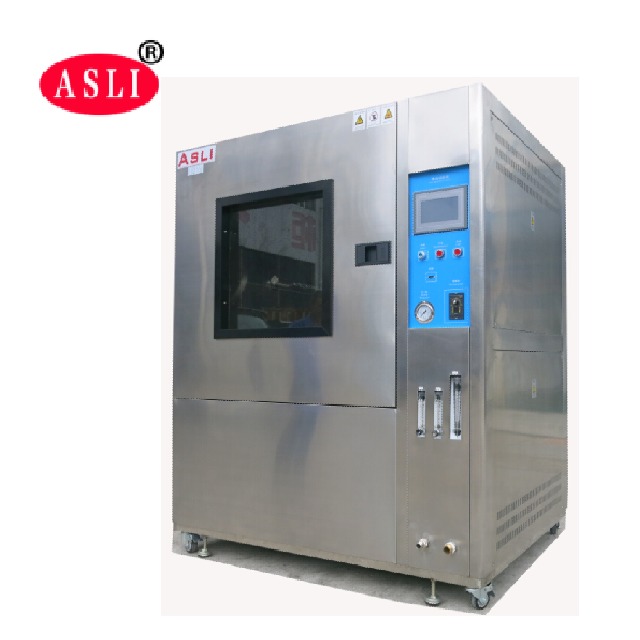

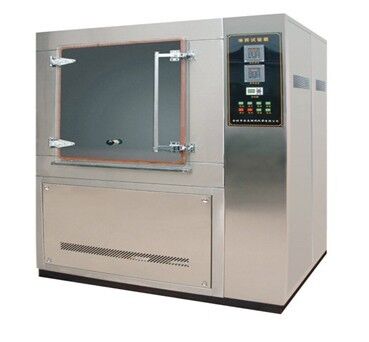

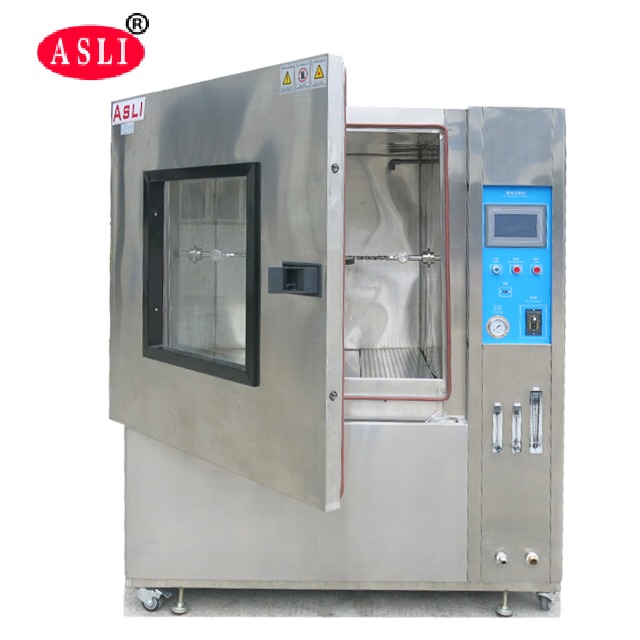

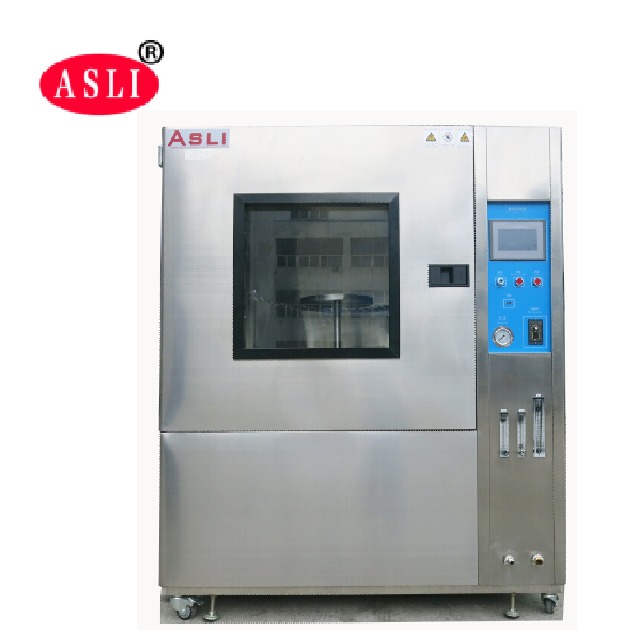

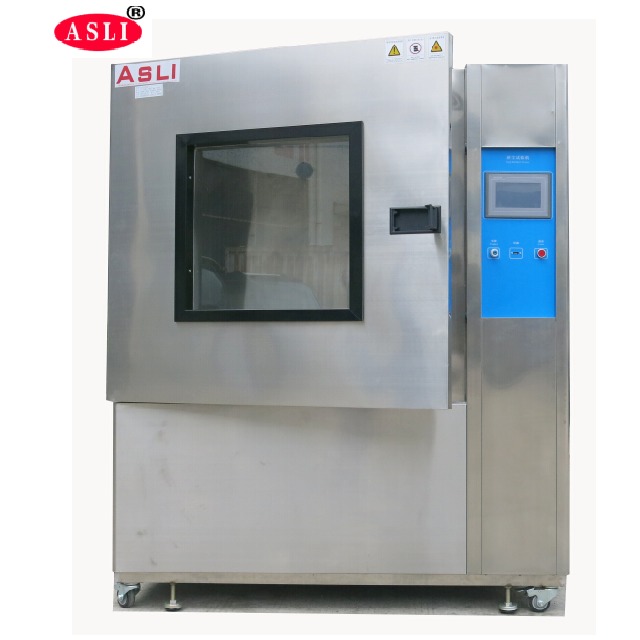

Designed for testing the waterproof capabilities of laptop LCD screens and other electronic enclosures in automotive and communication industries.
| Model | RT-1000A | RT-1000B |
|---|---|---|
| Internal Dimension WxHxD (mm) | 1000x1000x1000 | |
| External Dimension WxHxD (mm) | 1600x1900x1400 | |
| JIS Test | Flow: 1.8L/Min to 3.9L/Min Pressure: 0.1kgf/cm² to 0.3 kgf/cm² |
Flow: 24.5L/Min to 39.2L/Min Pressure: 1kgf/cm² to 3 kgf/cm² |
| Drop Test | 1 to 1.5mm/Min adjustable IPx1 IPx2 drop speed |
3 to 3.5mm/Min adjustable Drop speed: 3 to 3.5mm/Min |
| Rain of Pipe-Swing Test | IPx3 IPx4 swing pipe: RT to ±80°C | Flow: 0.07L/min per Nozzle |
| Water Spray Test | IPx3 IPx4 jet: 2.5m to 3m | Flow: 12.5L/min to 100L/Min |
| High Pressure Jet Test | 80Kgf to 100Kgf IPx9K pressure | Flow: 14 to 16L/Min |
| Rotating Speed of Rotating-Plate | 4 to 20 RPM adjustable | |
